May 16, 2025 • Gabriel Brammer

DJA+Grizli Cutout WFSS spectra

Simplified extraction of the grism spectrum for an arbitrary sky position within some WFSS exposure processed with DJA/Grizli.

Totally ignore the full-field contamination model and fit the 2D spectra with flexible spline components to model out continuum / contamination and isolate emission lines. No detection image, catalog, segmentation image required!.

2025-05-16-simplified_cutout_wfss.ipynb Notebook

import os
os.environ['CRDS_CONTEXT'] = "jwst_1322.pmap"
os.environ['NIRCAM_CONF_VERSION'] = "V9"

Build dependencies

E.g., on Google Colab.

Restart runtime if dependencies installed.

try:
    import grizli
except ImportError:
    # Install dependencies - restart runtime if performed
    ! pip install grizli[aws,jwst] msaexp
    ! pip install git+https://github.com/karllark/dust_attenuation.git

Environment variables

Requires an AWS account for downloading exposures, though the functionality shouldn’t generate any charges. If running in Google Colab, set the AWS credentials variables in the “Secrets” tab at the left with the key icon.

import os

env = {
    'CRDS_PATH': '/tmp/crds_cache',
    'CRDS_SERVER_URL': 'https://jwst-crds.stsci.edu'
}
for k in env:
    if os.getenv(k) is None:
        print(f'set {k} = {env[k]}')
        os.environ[k] = env[k]

try:
    from google.colab import userdata
    for k in ['AWS_ACCESS_KEY_ID', 'AWS_SECRET_ACCESS_KEY']:
        os.environ[k] = userdata.get(k)
except ImportError:
    pass

if os.getenv('AWS_ACCESS_KEY_ID') is None:
    print('AWS credentials not found.  Set them in the AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY environment variables')

set CRDS_PATH = /tmp/crds_cache
set CRDS_SERVER_URL = https://jwst-crds.stsci.edu

Download config files

from grizli import utils
from grizli.aws import db

CONF_DIR = os.path.join(utils.GRIZLI_PATH, "CONF")
if not os.path.exists(CONF_DIR):
    os.makedirs(CONF_DIR)

utils.fetch_config_files(get_sky=False, get_wfc3=False, get_jwst=True)

if not os.path.exists("fsps_line_templ.fits"):
    db.download_s3_file("s3://grizli-v2/junk/fsps_line_templ.fits")

Set ROOT_PATH=/content
Config directory: /usr/local/lib/python3.11/dist-packages/grizli/data//CONF
Get jwst-grism-conf.tar.gz
Get niriss.conf.220725.tar.gz
Get WFC3IR_extended_PSF.v1.tar.gz
Get PSFSTD_WFC3IR_F105W.fits


WARNING: VerifyWarning: Verification reported errors: [astropy.io.fits.verify]
WARNING:astropy:VerifyWarning: Verification reported errors:
WARNING: VerifyWarning: HDU 0: [astropy.io.fits.verify]
WARNING:astropy:VerifyWarning: HDU 0:
WARNING: VerifyWarning:     Card 10: [astropy.io.fits.verify]
WARNING:astropy:VerifyWarning:     Card 10:
WARNING: VerifyWarning:         Card keyword 'NXPSFs' is not upper case.  Fixed 'NXPSFS' card to meet the FITS standard. [astropy.io.fits.verify]
WARNING:astropy:VerifyWarning:         Card keyword 'NXPSFs' is not upper case.  Fixed 'NXPSFS' card to meet the FITS standard.
WARNING: VerifyWarning:     Card 11: [astropy.io.fits.verify]
WARNING:astropy:VerifyWarning:     Card 11:
WARNING: VerifyWarning:         Card keyword 'NYPSFs' is not upper case.  Fixed 'NYPSFS' card to meet the FITS standard. [astropy.io.fits.verify]
WARNING:astropy:VerifyWarning:         Card keyword 'NYPSFs' is not upper case.  Fixed 'NYPSFS' card to meet the FITS standard.
WARNING: VerifyWarning: Note: astropy.io.fits uses zero-based indexing.
 [astropy.io.fits.verify]
WARNING:astropy:VerifyWarning: Note: astropy.io.fits uses zero-based indexing.



Get PSFSTD_WFC3IR_F125W.fits
Get PSFSTD_WFC3IR_F140W.fits
Get PSFSTD_WFC3IR_F160W.fits
Get PSFSTD_WFC3IR_F110W.fits
Get PSFSTD_WFC3IR_F127M.fits


WARNING: VerifyWarning:     Card 12: [astropy.io.fits.verify]
WARNING:astropy:VerifyWarning:     Card 12:


Templates directory: /usr/local/lib/python3.11/dist-packages/grizli/data//templates
Get stars_pickles.npy
Get stars_bpgs.npy
ln -s stars_pickles.npy stars.npy
s3://grizli-v2/junk/fsps_line_templ.fits > ./fsps_line_templ.fits

# GRISM_NIRCAM (N. Pirzkal) for NIRCam
if 1:
    prev = os.getcwd()

    os.chdir(os.path.join(CONF_DIR, 'GRISM_NIRCAM'))

    if not os.path.exists('V9'):
        ! git clone https://github.com/npirzkal/GRISM_NIRCAM.git GRISM_NIRCAM_repo
        ! ln -s GRISM_NIRCAM_repo/* ./
    else:
        print('GRISM_NIRCAM files found')

    os.chdir(prev)

Cloning into 'GRISM_NIRCAM_repo'...
remote: Enumerating objects: 1491, done.[K
remote: Counting objects: 100% (353/353), done.[K
remote: Compressing objects: 100% (194/194), done.[K
remote: Total 1491 (delta 159), reused 353 (delta 159), pack-reused 1138 (from 1)[K
Receiving objects: 100% (1491/1491), 219.22 MiB | 2.69 MiB/s, done.
Resolving deltas: 100% (710/710), done.
Updating files: 100% (986/986), done.

from grizli import utils, grismconf
grismconf.download_jwst_crds_references()

Use NIRCAM_CONF_VERSION = V9
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_system_datalvl_0002.rmap      694 bytes  (1 / 202 files) (0 / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_system_calver_0046.rmap    5.2 K bytes  (2 / 202 files) (694 / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_system_0045.imap          385 bytes  (3 / 202 files) (5.9 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_wavelengthrange_0024.rmap    1.4 K bytes  (4 / 202 files) (6.3 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_wavecorr_0005.rmap      884 bytes  (5 / 202 files) (7.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_superbias_0074.rmap   33.8 K bytes  (6 / 202 files) (8.5 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_sflat_0026.rmap   20.6 K bytes  (7 / 202 files) (42.3 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_saturation_0018.rmap    2.0 K bytes  (8 / 202 files) (62.9 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_refpix_0015.rmap    1.6 K bytes  (9 / 202 files) (64.9 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_readnoise_0025.rmap    2.6 K bytes  (10 / 202 files) (66.5 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_photom_0013.rmap      958 bytes  (11 / 202 files) (69.1 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_pathloss_0008.rmap    1.2 K bytes  (12 / 202 files) (70.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_pars-whitelightstep_0001.rmap      777 bytes  (13 / 202 files) (71.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_pars-spec2pipeline_0013.rmap    2.1 K bytes  (14 / 202 files) (72.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_pars-resamplespecstep_0002.rmap      709 bytes  (15 / 202 files) (74.1 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_pars-outlierdetectionstep_0005.rmap    1.1 K bytes  (16 / 202 files) (74.8 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_pars-jumpstep_0005.rmap      810 bytes  (17 / 202 files) (76.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_pars-image2pipeline_0008.rmap    1.0 K bytes  (18 / 202 files) (76.8 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_pars-detector1pipeline_0003.rmap    1.1 K bytes  (19 / 202 files) (77.8 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_pars-darkpipeline_0003.rmap      872 bytes  (20 / 202 files) (78.8 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_pars-darkcurrentstep_0001.rmap      622 bytes  (21 / 202 files) (79.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_ote_0030.rmap    1.3 K bytes  (22 / 202 files) (80.3 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_msaoper_0016.rmap    1.5 K bytes  (23 / 202 files) (81.6 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_msa_0027.rmap    1.3 K bytes  (24 / 202 files) (83.1 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_mask_0039.rmap    2.7 K bytes  (25 / 202 files) (84.3 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_linearity_0017.rmap    1.6 K bytes  (26 / 202 files) (87.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_ipc_0006.rmap      876 bytes  (27 / 202 files) (88.6 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_ifuslicer_0017.rmap    1.5 K bytes  (28 / 202 files) (89.5 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_ifupost_0019.rmap    1.5 K bytes  (29 / 202 files) (91.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_ifufore_0017.rmap    1.5 K bytes  (30 / 202 files) (92.5 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_gain_0023.rmap    1.8 K bytes  (31 / 202 files) (94.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_fpa_0028.rmap    1.3 K bytes  (32 / 202 files) (95.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_fore_0026.rmap    5.0 K bytes  (33 / 202 files) (97.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_flat_0015.rmap    3.8 K bytes  (34 / 202 files) (102.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_fflat_0026.rmap    7.2 K bytes  (35 / 202 files) (105.8 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_extract1d_0018.rmap    2.3 K bytes  (36 / 202 files) (113.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_disperser_0028.rmap    5.7 K bytes  (37 / 202 files) (115.3 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_dflat_0007.rmap    1.1 K bytes  (38 / 202 files) (121.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_dark_0069.rmap   32.6 K bytes  (39 / 202 files) (122.1 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_cubepar_0015.rmap      966 bytes  (40 / 202 files) (154.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_collimator_0026.rmap    1.3 K bytes  (41 / 202 files) (155.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_camera_0026.rmap    1.3 K bytes  (42 / 202 files) (157.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_barshadow_0007.rmap    1.8 K bytes  (43 / 202 files) (158.3 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_area_0018.rmap    6.3 K bytes  (44 / 202 files) (160.1 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_apcorr_0009.rmap    5.6 K bytes  (45 / 202 files) (166.4 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nirspec_0387.imap       5.7 K bytes  (46 / 202 files) (171.9 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_wfssbkg_0008.rmap    3.1 K bytes  (47 / 202 files) (177.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_wavemap_0008.rmap    2.2 K bytes  (48 / 202 files) (180.8 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_wavelengthrange_0006.rmap      862 bytes  (49 / 202 files) (183.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_trappars_0004.rmap      753 bytes  (50 / 202 files) (183.9 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_trapdensity_0005.rmap      705 bytes  (51 / 202 files) (184.6 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_throughput_0005.rmap    1.3 K bytes  (52 / 202 files) (185.3 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_superbias_0030.rmap    7.4 K bytes  (53 / 202 files) (186.6 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_specwcs_0014.rmap    3.1 K bytes  (54 / 202 files) (194.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_spectrace_0008.rmap    2.3 K bytes  (55 / 202 files) (197.1 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_specprofile_0008.rmap    2.4 K bytes  (56 / 202 files) (199.5 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_speckernel_0006.rmap    1.0 K bytes  (57 / 202 files) (201.8 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_saturation_0015.rmap      829 bytes  (58 / 202 files) (202.9 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_readnoise_0011.rmap      987 bytes  (59 / 202 files) (203.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_photom_0036.rmap    1.3 K bytes  (60 / 202 files) (204.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_persat_0007.rmap      674 bytes  (61 / 202 files) (205.9 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_pathloss_0003.rmap      758 bytes  (62 / 202 files) (206.6 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_pastasoss_0004.rmap      818 bytes  (63 / 202 files) (207.4 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_pars-undersamplecorrectionstep_0001.rmap      904 bytes  (64 / 202 files) (208.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_pars-tweakregstep_0012.rmap    3.1 K bytes  (65 / 202 files) (209.1 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_pars-spec2pipeline_0008.rmap      984 bytes  (66 / 202 files) (212.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_pars-sourcecatalogstep_0002.rmap    2.3 K bytes  (67 / 202 files) (213.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_pars-resamplestep_0002.rmap      687 bytes  (68 / 202 files) (215.5 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_pars-outlierdetectionstep_0004.rmap    2.7 K bytes  (69 / 202 files) (216.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_pars-jumpstep_0007.rmap    6.4 K bytes  (70 / 202 files) (218.9 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_pars-image2pipeline_0005.rmap    1.0 K bytes  (71 / 202 files) (225.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_pars-detector1pipeline_0002.rmap    1.0 K bytes  (72 / 202 files) (226.3 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_pars-darkpipeline_0002.rmap      868 bytes  (73 / 202 files) (227.3 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_pars-darkcurrentstep_0001.rmap      591 bytes  (74 / 202 files) (228.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_pars-chargemigrationstep_0004.rmap    5.7 K bytes  (75 / 202 files) (228.8 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_nrm_0005.rmap      663 bytes  (76 / 202 files) (234.4 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_mask_0022.rmap    1.3 K bytes  (77 / 202 files) (235.1 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_linearity_0022.rmap      961 bytes  (78 / 202 files) (236.4 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_ipc_0007.rmap      651 bytes  (79 / 202 files) (237.3 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_gain_0011.rmap      797 bytes  (80 / 202 files) (238.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_flat_0023.rmap    5.9 K bytes  (81 / 202 files) (238.8 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_filteroffset_0010.rmap      853 bytes  (82 / 202 files) (244.6 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_extract1d_0007.rmap      905 bytes  (83 / 202 files) (245.5 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_drizpars_0004.rmap      519 bytes  (84 / 202 files) (246.4 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_distortion_0025.rmap    3.4 K bytes  (85 / 202 files) (246.9 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_dark_0034.rmap    7.5 K bytes  (86 / 202 files) (250.4 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_area_0014.rmap    2.7 K bytes  (87 / 202 files) (257.9 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_apcorr_0010.rmap    4.3 K bytes  (88 / 202 files) (260.6 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_abvegaoffset_0004.rmap    1.4 K bytes  (89 / 202 files) (264.9 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_niriss_0267.imap        5.8 K bytes  (90 / 202 files) (266.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_wfssbkg_0004.rmap    7.2 K bytes  (91 / 202 files) (272.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_wavelengthrange_0010.rmap      996 bytes  (92 / 202 files) (279.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_tsophot_0003.rmap      896 bytes  (93 / 202 files) (280.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_trappars_0003.rmap    1.6 K bytes  (94 / 202 files) (281.1 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_trapdensity_0003.rmap    1.6 K bytes  (95 / 202 files) (282.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_superbias_0018.rmap   16.2 K bytes  (96 / 202 files) (284.4 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_specwcs_0022.rmap    7.1 K bytes  (97 / 202 files) (300.5 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_sirskernel_0002.rmap      671 bytes  (98 / 202 files) (307.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_saturation_0010.rmap    2.2 K bytes  (99 / 202 files) (308.3 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_readnoise_0025.rmap   23.2 K bytes  (100 / 202 files) (310.5 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_psfmask_0008.rmap   28.4 K bytes  (101 / 202 files) (333.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_photom_0028.rmap    3.4 K bytes  (102 / 202 files) (362.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_persat_0005.rmap    1.6 K bytes  (103 / 202 files) (365.4 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_pars-whitelightstep_0003.rmap    1.5 K bytes  (104 / 202 files) (367.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_pars-tweakregstep_0003.rmap    4.5 K bytes  (105 / 202 files) (368.4 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_pars-spec2pipeline_0008.rmap      984 bytes  (106 / 202 files) (372.9 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_pars-sourcecatalogstep_0002.rmap    4.6 K bytes  (107 / 202 files) (373.9 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_pars-resamplestep_0002.rmap      687 bytes  (108 / 202 files) (378.5 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_pars-outlierdetectionstep_0003.rmap      940 bytes  (109 / 202 files) (379.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_pars-jumpstep_0005.rmap      806 bytes  (110 / 202 files) (380.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_pars-image2pipeline_0003.rmap    1.0 K bytes  (111 / 202 files) (381.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_pars-detector1pipeline_0003.rmap    1.0 K bytes  (112 / 202 files) (382.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_pars-darkpipeline_0002.rmap      868 bytes  (113 / 202 files) (383.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_pars-darkcurrentstep_0001.rmap      618 bytes  (114 / 202 files) (383.9 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_mask_0011.rmap    3.5 K bytes  (115 / 202 files) (384.5 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_linearity_0011.rmap    2.4 K bytes  (116 / 202 files) (388.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_ipc_0003.rmap    2.0 K bytes  (117 / 202 files) (390.4 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_gain_0016.rmap    2.1 K bytes  (118 / 202 files) (392.4 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_flat_0027.rmap   51.7 K bytes  (119 / 202 files) (394.5 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_filteroffset_0004.rmap    1.4 K bytes  (120 / 202 files) (446.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_extract1d_0004.rmap      842 bytes  (121 / 202 files) (447.6 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_drizpars_0001.rmap      519 bytes  (122 / 202 files) (448.5 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_distortion_0033.rmap   53.4 K bytes  (123 / 202 files) (449.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_dark_0046.rmap   26.4 K bytes  (124 / 202 files) (502.3 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_area_0012.rmap   33.5 K bytes  (125 / 202 files) (528.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_apcorr_0008.rmap    4.3 K bytes  (126 / 202 files) (562.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_abvegaoffset_0003.rmap    1.3 K bytes  (127 / 202 files) (566.5 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_nircam_0301.imap        5.6 K bytes  (128 / 202 files) (567.8 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_wavelengthrange_0027.rmap      929 bytes  (129 / 202 files) (573.4 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_tsophot_0004.rmap      882 bytes  (130 / 202 files) (574.3 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_straymask_0009.rmap      987 bytes  (131 / 202 files) (575.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_specwcs_0042.rmap    5.8 K bytes  (132 / 202 files) (576.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_saturation_0015.rmap    1.2 K bytes  (133 / 202 files) (582.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_rscd_0008.rmap     1.0 K bytes  (134 / 202 files) (583.1 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_resol_0006.rmap      790 bytes  (135 / 202 files) (584.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_reset_0026.rmap    3.9 K bytes  (136 / 202 files) (585.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_regions_0033.rmap    5.2 K bytes  (137 / 202 files) (588.8 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_readnoise_0023.rmap    1.6 K bytes  (138 / 202 files) (594.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_psfmask_0009.rmap    2.1 K bytes  (139 / 202 files) (595.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_psf_0002.rmap        753 bytes  (140 / 202 files) (597.8 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_photom_0056.rmap    3.7 K bytes  (141 / 202 files) (598.5 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_pathloss_0005.rmap      866 bytes  (142 / 202 files) (602.3 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_pars-whitelightstep_0003.rmap      912 bytes  (143 / 202 files) (603.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_pars-tweakregstep_0003.rmap    1.8 K bytes  (144 / 202 files) (604.1 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_pars-spec3pipeline_0009.rmap      816 bytes  (145 / 202 files) (605.9 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_pars-spec2pipeline_0012.rmap    1.3 K bytes  (146 / 202 files) (606.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_pars-sourcecatalogstep_0003.rmap    1.9 K bytes  (147 / 202 files) (608.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_pars-resamplestep_0002.rmap      677 bytes  (148 / 202 files) (610.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_pars-resamplespecstep_0002.rmap      706 bytes  (149 / 202 files) (610.6 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_pars-outlierdetectionstep_0017.rmap    3.4 K bytes  (150 / 202 files) (611.3 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_pars-jumpstep_0011.rmap    1.6 K bytes  (151 / 202 files) (614.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_pars-image2pipeline_0007.rmap      983 bytes  (152 / 202 files) (616.3 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_pars-extract1dstep_0003.rmap      807 bytes  (153 / 202 files) (617.3 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_pars-emicorrstep_0003.rmap      796 bytes  (154 / 202 files) (618.1 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_pars-detector1pipeline_0010.rmap    1.6 K bytes  (155 / 202 files) (618.9 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_pars-darkpipeline_0002.rmap      860 bytes  (156 / 202 files) (620.5 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_pars-darkcurrentstep_0002.rmap      683 bytes  (157 / 202 files) (621.3 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_mrsxartcorr_0002.rmap    2.2 K bytes  (158 / 202 files) (622.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_mrsptcorr_0005.rmap    2.0 K bytes  (159 / 202 files) (624.1 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_mask_0023.rmap     3.5 K bytes  (160 / 202 files) (626.1 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_linearity_0018.rmap    2.8 K bytes  (161 / 202 files) (629.6 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_ipc_0008.rmap        700 bytes  (162 / 202 files) (632.4 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_gain_0013.rmap     3.9 K bytes  (163 / 202 files) (633.1 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_fringefreq_0003.rmap    1.4 K bytes  (164 / 202 files) (637.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_fringe_0019.rmap    3.9 K bytes  (165 / 202 files) (638.5 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_flat_0065.rmap    15.5 K bytes  (166 / 202 files) (642.4 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_filteroffset_0025.rmap    2.5 K bytes  (167 / 202 files) (657.9 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_extract1d_0020.rmap    1.4 K bytes  (168 / 202 files) (660.4 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_emicorr_0003.rmap      663 bytes  (169 / 202 files) (661.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_drizpars_0002.rmap      511 bytes  (170 / 202 files) (662.4 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_distortion_0040.rmap    4.9 K bytes  (171 / 202 files) (662.9 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_dark_0036.rmap     4.4 K bytes  (172 / 202 files) (667.8 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_cubepar_0017.rmap      800 bytes  (173 / 202 files) (672.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_area_0015.rmap       866 bytes  (174 / 202 files) (673.0 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_apcorr_0019.rmap    5.0 K bytes  (175 / 202 files) (673.8 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_abvegaoffset_0003.rmap    1.3 K bytes  (176 / 202 files) (678.8 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_miri_0423.imap          5.8 K bytes  (177 / 202 files) (680.1 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_trappars_0004.rmap      903 bytes  (178 / 202 files) (685.9 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_trapdensity_0006.rmap      930 bytes  (179 / 202 files) (686.8 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_superbias_0017.rmap    3.8 K bytes  (180 / 202 files) (687.8 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_saturation_0009.rmap      779 bytes  (181 / 202 files) (691.5 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_readnoise_0011.rmap    1.3 K bytes  (182 / 202 files) (692.3 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_photom_0014.rmap    1.1 K bytes  (183 / 202 files) (693.6 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_persat_0006.rmap      884 bytes  (184 / 202 files) (694.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_pars-tweakregstep_0002.rmap      850 bytes  (185 / 202 files) (695.6 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_pars-sourcecatalogstep_0001.rmap      636 bytes  (186 / 202 files) (696.4 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_pars-outlierdetectionstep_0001.rmap      654 bytes  (187 / 202 files) (697.1 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_pars-image2pipeline_0005.rmap      974 bytes  (188 / 202 files) (697.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_pars-detector1pipeline_0002.rmap    1.0 K bytes  (189 / 202 files) (698.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_pars-darkpipeline_0002.rmap      856 bytes  (190 / 202 files) (699.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_mask_0023.rmap      1.1 K bytes  (191 / 202 files) (700.6 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_linearity_0015.rmap      925 bytes  (192 / 202 files) (701.6 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_ipc_0003.rmap         614 bytes  (193 / 202 files) (702.6 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_gain_0010.rmap        890 bytes  (194 / 202 files) (703.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_flat_0009.rmap      1.1 K bytes  (195 / 202 files) (704.1 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_distortion_0011.rmap    1.2 K bytes  (196 / 202 files) (705.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_dark_0017.rmap      4.3 K bytes  (197 / 202 files) (706.4 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_area_0010.rmap      1.2 K bytes  (198 / 202 files) (710.7 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_apcorr_0004.rmap    4.0 K bytes  (199 / 202 files) (711.9 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_abvegaoffset_0002.rmap    1.3 K bytes  (200 / 202 files) (715.8 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_fgs_0118.imap           5.1 K bytes  (201 / 202 files) (717.1 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/mappings/jwst/jwst_1322.pmap                 580 bytes  (202 / 202 files) (722.2 K / 722.8 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_photom_0162.fits    1.7 M bytes  (1 / 2 files) (0 / 1.7 M bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0186.asdf    9.3 K bytes  (2 / 2 files) (1.7 M / 1.7 M bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_photom_0163.fits    1.7 M bytes  (1 / 2 files) (0 / 1.7 M bytes)


crds_reffiles: NIRCAM F277W GRISMR A (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0162.fits jwst_nircam_specwcs_0186.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0160.asdf    9.3 K bytes  (2 / 2 files) (1.7 M / 1.7 M bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0171.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)


crds_reffiles: NIRCAM F277W GRISMR B (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0163.fits jwst_nircam_specwcs_0160.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0174.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)


crds_reffiles: NIRCAM F277W GRISMC A (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0162.fits jwst_nircam_specwcs_0171.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0184.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)


crds_reffiles: NIRCAM F277W GRISMC B (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0163.fits jwst_nircam_specwcs_0174.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0199.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)


crds_reffiles: NIRCAM F356W GRISMR A (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0162.fits jwst_nircam_specwcs_0184.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0165.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)


crds_reffiles: NIRCAM F356W GRISMR B (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0163.fits jwst_nircam_specwcs_0199.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0182.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)


crds_reffiles: NIRCAM F356W GRISMC A (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0162.fits jwst_nircam_specwcs_0165.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0178.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)


crds_reffiles: NIRCAM F356W GRISMC B (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0163.fits jwst_nircam_specwcs_0182.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0164.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)


crds_reffiles: NIRCAM F410M GRISMR A (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0162.fits jwst_nircam_specwcs_0178.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0181.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)


crds_reffiles: NIRCAM F410M GRISMR B (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0163.fits jwst_nircam_specwcs_0164.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap
crds_reffiles: NIRCAM F410M GRISMC A (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0162.fits jwst_nircam_specwcs_0181.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0159.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0190.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)


crds_reffiles: NIRCAM F410M GRISMC B (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0163.fits jwst_nircam_specwcs_0159.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap

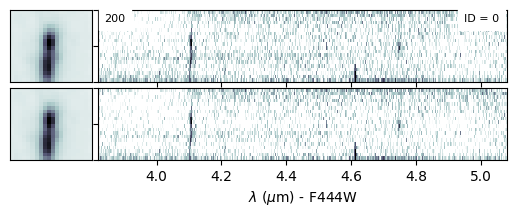

crds_reffiles: NIRCAM F444W GRISMR A (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0162.fits jwst_nircam_specwcs_0190.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0187.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0173.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)


crds_reffiles: NIRCAM F444W GRISMR B (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0163.fits jwst_nircam_specwcs_0187.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0203.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)


crds_reffiles: NIRCAM F444W GRISMC A (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0162.fits jwst_nircam_specwcs_0173.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0191.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)


crds_reffiles: NIRCAM F444W GRISMC B (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0163.fits jwst_nircam_specwcs_0203.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0179.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)


crds_reffiles: NIRCAM F460M GRISMR A (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0162.fits jwst_nircam_specwcs_0191.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0195.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)


crds_reffiles: NIRCAM F460M GRISMR B (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0163.fits jwst_nircam_specwcs_0179.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0169.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)


crds_reffiles: NIRCAM F460M GRISMC A (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0162.fits jwst_nircam_specwcs_0195.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0192.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)


crds_reffiles: NIRCAM F460M GRISMC B (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0163.fits jwst_nircam_specwcs_0169.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0197.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)


crds_reffiles: NIRCAM F480M GRISMR A (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0162.fits jwst_nircam_specwcs_0192.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0180.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)


crds_reffiles: NIRCAM F480M GRISMR B (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0163.fits jwst_nircam_specwcs_0197.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/nircam/jwst_nircam_specwcs_0168.asdf    9.3 K bytes  (1 / 1 files) (0 / 9.3 K bytes)


crds_reffiles: NIRCAM F480M GRISMC A (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0162.fits jwst_nircam_specwcs_0180.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap
crds_reffiles: NIRCAM F480M GRISMC B (jwst_1322.pmap)
crds_reffiles: jwst_nircam_photom_0163.fits jwst_nircam_specwcs_0168.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/niriss/jwst_niriss_photom_0041.fits    3.6 M bytes  (1 / 2 files) (0 / 3.6 M bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0050.asdf   20.6 K bytes  (2 / 2 files) (3.6 M / 3.6 M bytes)
CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0047.asdf   20.6 K bytes  (1 / 1 files) (0 / 20.6 K bytes)


crds_reffiles: NIRISS GR150R F090W A (jwst_1322.pmap)
crds_reffiles: jwst_niriss_photom_0041.fits jwst_niriss_specwcs_0050.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0054.asdf   24.4 K bytes  (1 / 1 files) (0 / 24.4 K bytes)


crds_reffiles: NIRISS GR150C F090W A (jwst_1322.pmap)
crds_reffiles: jwst_niriss_photom_0041.fits jwst_niriss_specwcs_0047.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0053.asdf   27.4 K bytes  (1 / 1 files) (0 / 27.4 K bytes)


crds_reffiles: NIRISS GR150R F115W A (jwst_1322.pmap)
crds_reffiles: jwst_niriss_photom_0041.fits jwst_niriss_specwcs_0054.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0056.asdf   27.5 K bytes  (1 / 1 files) (0 / 27.5 K bytes)


crds_reffiles: NIRISS GR150C F115W A (jwst_1322.pmap)
crds_reffiles: jwst_niriss_photom_0041.fits jwst_niriss_specwcs_0053.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0055.asdf   30.5 K bytes  (1 / 1 files) (0 / 30.5 K bytes)


crds_reffiles: NIRISS GR150R F150W A (jwst_1322.pmap)
crds_reffiles: jwst_niriss_photom_0041.fits jwst_niriss_specwcs_0056.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0052.asdf   27.5 K bytes  (1 / 1 files) (0 / 27.5 K bytes)


crds_reffiles: NIRISS GR150C F150W A (jwst_1322.pmap)
crds_reffiles: jwst_niriss_photom_0041.fits jwst_niriss_specwcs_0055.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap


CRDS - INFO -  Fetching  /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0051.asdf   30.5 K bytes  (1 / 1 files) (0 / 30.5 K bytes)


crds_reffiles: NIRISS GR150R F200W A (jwst_1322.pmap)
crds_reffiles: jwst_niriss_photom_0041.fits jwst_niriss_specwcs_0052.asdf
ENV CRDS_CONTEXT = jwst_1322.pmap
crds_reffiles: NIRISS GR150C F200W A (jwst_1322.pmap)
crds_reffiles: jwst_niriss_photom_0041.fits jwst_niriss_specwcs_0051.asdf

Imports

Can skip to here if config files and dependencies already installed above.

import os

import numpy as np
import matplotlib.pyplot as plt

import astropy.io.fits as pyfits
import astropy.wcs as pywcs

import grizli.jwst_utils
grizli.jwst_utils.set_quiet_logging()

from grizli.aws import db
from grizli import utils, grismconf
from grizli.aws import sky_wfss

utils.set_warnings()

import grizli
import msaexp

from IPython.display import Image

print('grizli version: ', grizli.__version__)
print('msaexp version: ', msaexp.__version__)

grizli version:  1.12.14
msaexp version:  0.9.8

from importlib import reload
reload(sky_wfss)

prefix = 'dja-grism'
kwargs = {}

# Segmentation image for NIRISS demo
if not os.path.exists('gds-sw-grizli-v7.0-ir_seg.fits'):
    ! wget https://s3.amazonaws.com/grizli-v2/JwstMosaics/v7/gds-sw-grizli-v7.0-ir_seg.fits.gz
    ! gunzip gds-sw-grizli-v7.0-ir_seg.fits.gz

--2025-05-16 19:27:21--  https://s3.amazonaws.com/grizli-v2/JwstMosaics/v7/gds-sw-grizli-v7.0-ir_seg.fits.gz
Resolving s3.amazonaws.com (s3.amazonaws.com)... 3.5.9.70, 54.231.192.120, 16.182.105.32, ...
Connecting to s3.amazonaws.com (s3.amazonaws.com)|3.5.9.70|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 5996324 (5.7M) [binary/octet-stream]
Saving to: ‘gds-sw-grizli-v7.0-ir_seg.fits.gz’

gds-sw-grizli-v7.0- 100%[===================>]   5.72M  14.4MB/s    in 0.4s

2025-05-16 19:27:22 (14.4 MB/s) - ‘gds-sw-grizli-v7.0-ir_seg.fits.gz’ saved [5996324/5996324]

Set source and extract spectrum

All you really need to specify is a set of target coordinates (ra, dec) and a list of the desired grism names to search for.

The script

Queries and downloads all DJA-processed exposures whose corner footprint contains the requested point. Note that there might not be a usable spectrum in a particular exposure if the nominal coordinate is within the WCS “footprint” of the grism exposure but the dispersed spectrum falls off of the detector.
Pulls a FITS cutout from the DJA/grizli API to use for the direct image. No direct image is needed for the basic extraction and redshift fitting, which here uses a simplified Gaussian model for the optimal extractions, but the direct image is needed for the full grizli functionality (line maps, etc.)
Generates a grizli.multifit.MultiBeam object of 2D cutouts from the grism exposures.

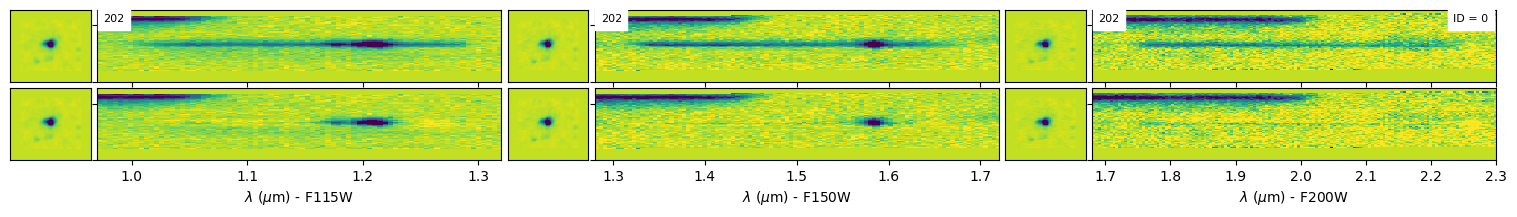

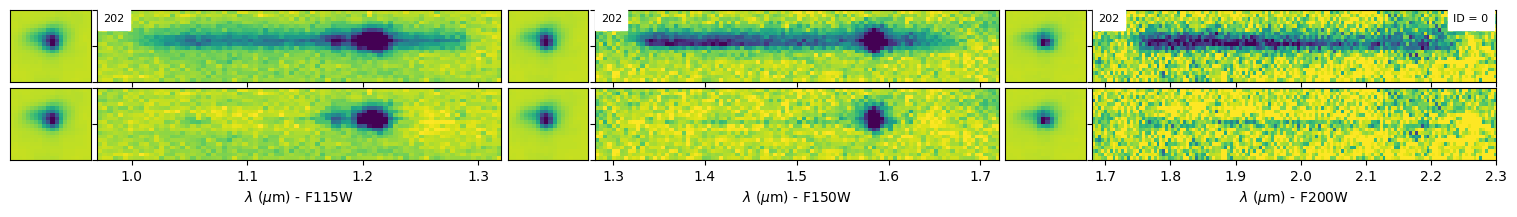

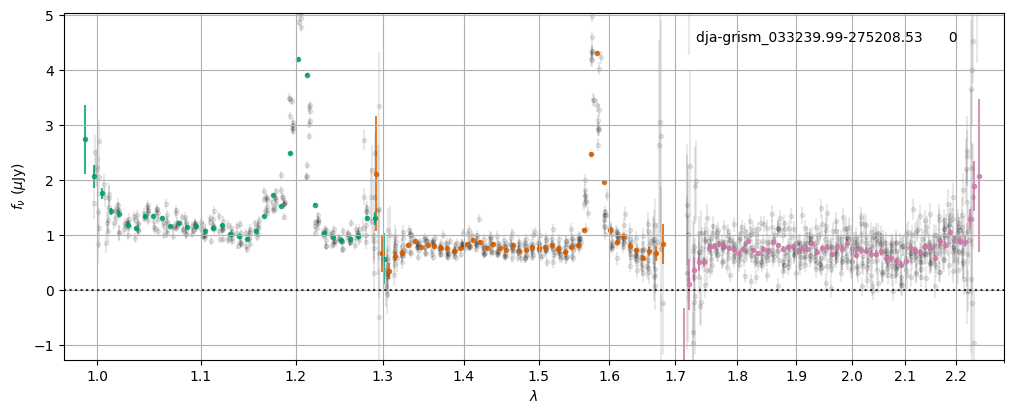

NIRISS

If a segmentation_image is provided, the source ID will be read from the specified target coordinates and the segmentation image will be used for a crude zeroth-order mask.

reload(sky_wfss)

## NIRISS test
ra, dec = 53.1666323, -27.8690371 # multiple lines

# segmentation_image = "gds-sw-grizli-v7.0-ir_seg.fits"
segmentation_image = None

mb = sky_wfss.extract_from_coords(
    ra=ra, dec=dec,
    grisms=['F115W-GR150R','F115W-GR150C','F150W-GR150R','F150W-GR150C','F200W-GR150R','F200W-GR150C'][0::2],
    size=24,
    grp=None,
    clean=False,
    get_cutout=1,
    cutout_filter=','.join(['F150W-CLEAR','F150WN-CLEAR','F200W-CLEAR','F200WN-CLEAR'][:]), # Direct image filters
    thumbnail_size=0.8 * 4,
    prefix=prefix,
    mb_kwargs={"min_sens": 0.0, "min_mask": 0.0},
    filter_kwargs=[{}, None][1],
    verbose=True,
    local=False,
    segmentation_image=segmentation_image,
    use_jwst_crds=True,
    **kwargs
)

https://grizli-cutout.herokuapp.com/exposures?polygon=rect(53.166632,-27.869037,0.25)&filters=F115W-GR150R,F150W-GR150R,F200W-GR150R&output=csv
extract_from_coords: dja-grism_033239.99-275208.53 27 exposures
./jw01283005001_04201_00001_nis_rate.fits exists
./jw01283005001_04201_00002_nis_rate.fits exists
./jw01283005001_04201_00003_nis_rate.fits exists
./jw01283005001_04201_00004_nis_rate.fits exists
./jw01283005001_04201_00005_nis_rate.fits exists
./jw01283005001_04201_00006_nis_rate.fits exists
./jw01283005001_04201_00007_nis_rate.fits exists
./jw01283005001_04201_00008_nis_rate.fits exists
./jw01283005001_04201_00009_nis_rate.fits exists
./jw01283005001_09201_00001_nis_rate.fits exists
./jw01283005001_09201_00002_nis_rate.fits exists
./jw01283005001_09201_00003_nis_rate.fits exists
./jw01283005001_09201_00004_nis_rate.fits exists
./jw01283005001_09201_00005_nis_rate.fits exists
./jw01283005001_09201_00006_nis_rate.fits exists
./jw01283005001_09201_00007_nis_rate.fits exists
./jw01283005001_09201_00008_nis_rate.fits exists
./jw01283005001_09201_00009_nis_rate.fits exists
./jw01283005001_14201_00001_nis_rate.fits exists
./jw01283005001_14201_00002_nis_rate.fits exists
./jw01283005001_14201_00003_nis_rate.fits exists
./jw01283005001_14201_00004_nis_rate.fits exists
./jw01283005001_14201_00005_nis_rate.fits exists
./jw01283005001_14201_00006_nis_rate.fits exists
./jw01283005001_14201_00007_nis_rate.fits exists
./jw01283005001_14201_00008_nis_rate.fits exists
./jw01283005001_14201_00009_nis_rate.fits exists
https://grizli-cutout.herokuapp.com/thumb?all_filters=False&filters=f150w-clear,f150wn-clear,f200w-clear,f200wn-clear&ra=53.1666323&dec=-27.8690371&size=3.2&output=fits_weight -> dja-grism_033239.99-275208.53_ir.fits
thumbnail: F150W-CLEAR
thumbnail: F150WN-CLEAR
thumbnail: F200W-CLEAR
thumbnail: F200WN-CLEAR
extract_from_coords: direct image = dja-grism_033239.99-275208.53_ir.fits
 1 / 27 GroupFLT jw01283005001_04201_00001_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0054.asdf GR150R F115W F115W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
 2 / 27 GroupFLT jw01283005001_04201_00002_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0054.asdf GR150R F115W F115W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
 3 / 27 GroupFLT jw01283005001_04201_00003_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0054.asdf GR150R F115W F115W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
 4 / 27 GroupFLT jw01283005001_04201_00004_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0054.asdf GR150R F115W F115W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
 5 / 27 GroupFLT jw01283005001_04201_00005_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0054.asdf GR150R F115W F115W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
 6 / 27 GroupFLT jw01283005001_04201_00006_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0054.asdf GR150R F115W F115W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
 7 / 27 GroupFLT jw01283005001_04201_00007_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0054.asdf GR150R F115W F115W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
 8 / 27 GroupFLT jw01283005001_04201_00008_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0054.asdf GR150R F115W F115W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
 9 / 27 GroupFLT jw01283005001_04201_00009_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0054.asdf GR150R F115W F115W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
10 / 27 GroupFLT jw01283005001_09201_00001_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0056.asdf GR150R F150W F150W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
11 / 27 GroupFLT jw01283005001_09201_00002_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0056.asdf GR150R F150W F150W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
12 / 27 GroupFLT jw01283005001_09201_00003_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0056.asdf GR150R F150W F150W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
13 / 27 GroupFLT jw01283005001_09201_00004_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0056.asdf GR150R F150W F150W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
14 / 27 GroupFLT jw01283005001_09201_00005_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0056.asdf GR150R F150W F150W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
15 / 27 GroupFLT jw01283005001_09201_00006_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0056.asdf GR150R F150W F150W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
16 / 27 GroupFLT jw01283005001_09201_00007_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0056.asdf GR150R F150W F150W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
17 / 27 GroupFLT jw01283005001_09201_00008_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0056.asdf GR150R F150W F150W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
18 / 27 GroupFLT jw01283005001_09201_00009_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0056.asdf GR150R F150W F150W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
19 / 27 GroupFLT jw01283005001_14201_00001_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0052.asdf GR150R F200W F200W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
20 / 27 GroupFLT jw01283005001_14201_00002_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0052.asdf GR150R F200W F200W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
21 / 27 GroupFLT jw01283005001_14201_00003_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0052.asdf GR150R F200W F200W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
22 / 27 GroupFLT jw01283005001_14201_00004_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0052.asdf GR150R F200W F200W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
23 / 27 GroupFLT jw01283005001_14201_00005_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0052.asdf GR150R F200W F200W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
24 / 27 GroupFLT jw01283005001_14201_00006_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0052.asdf GR150R F200W F200W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
25 / 27 GroupFLT jw01283005001_14201_00007_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0052.asdf GR150R F200W F200W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
26 / 27 GroupFLT jw01283005001_14201_00008_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0052.asdf GR150R F200W F200W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
27 / 27 GroupFLT jw01283005001_14201_00009_nis_rate.fits
get_conf: xxx /tmp/crds_cache/references/jwst/niriss/jwst_niriss_specwcs_0052.asdf GR150R F200W F200W None NIRISS
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
Using default C-based coordinate transformation...
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)

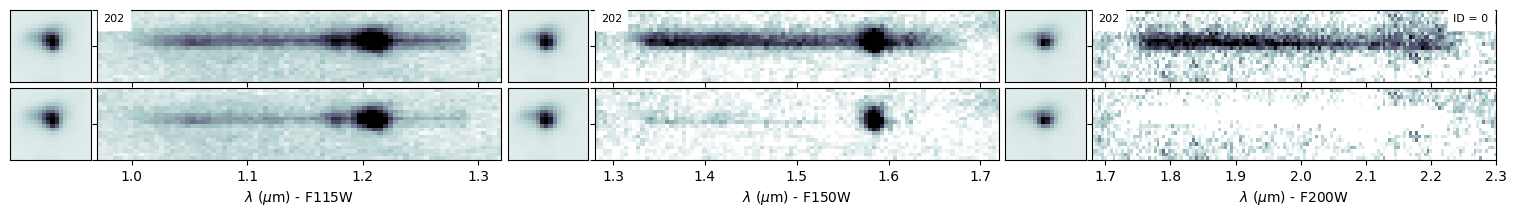

extract_from_coords: dja-grism_033239.99-275208.53 27 beam cutouts

png

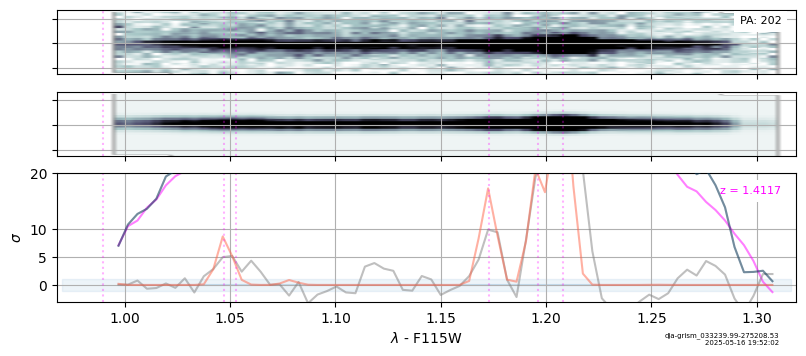

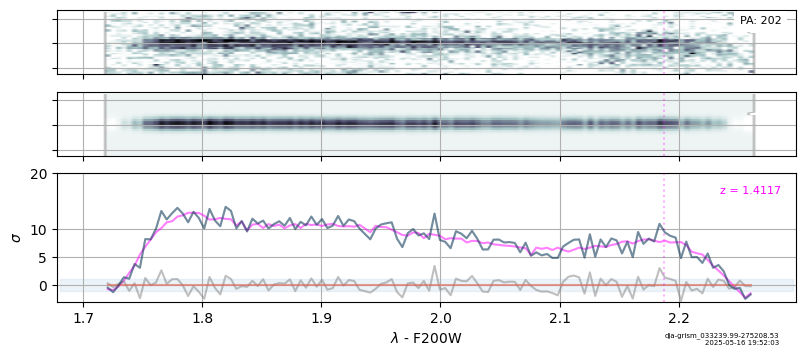

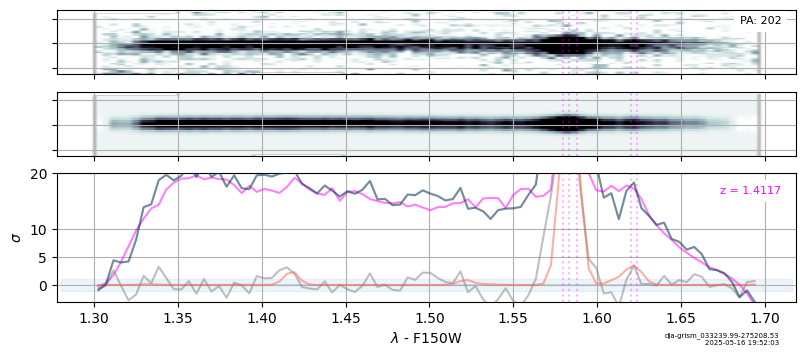

Fit redshift

This script tries to fit flexible functions to account for the contamination, and uses a simplified compact Gaussian profile to use for the optimal extraction. These are crude approximations, but actually tend to work acceptably for emission lines with reasonable S/N.

from importlib import reload
reload(sky_wfss)

dv = 800 # line width for fitting, km/s

b2d, zres = sky_wfss.combine_beams_2d(
    mb,
    step=0.5, pixfrac=0.75, # 2D "pseudodrizzle" parameters
    ymax=12.5,
    profile_sigma=1.5, profile_offset=-0.5, profile_type="gaussian",     # Gaussian cross-dispersion model
    # profile_type="grizli",                                             # Estimate a profile using the direct image
    bkg_percentile=None,
    # cont_spline=11, zfit_nspline=-1,  # Remove all contamination *before* fitting
    cont_spline=0, zfit_nspline=11,     # Fit with flexible splines to model contamination
    zfit_kwargs=dict(
        rest_wave=[6500, 4400], # Halpha - OIII
        velocity_sigma=dv,
        dz=dv/3.e5/2,
    ),
    ylim=(-3, 20), yticks=[0, 5, 10, 20],
    auto_niriss=False,
)

final spectrum file: dja-grism_033239.99-275208.53.f115w.spec.fits
final spectrum file: dja-grism_033239.99-275208.53.f150w.spec.fits
final spectrum file: dja-grism_033239.99-275208.53.f200w.spec.fits

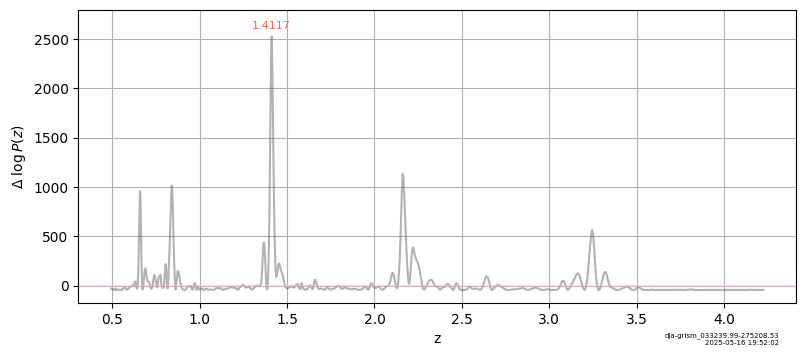

redshift_fit_1d dja-grism_033239.99-275208.53 z=[0.492, 4.226] dz=0.0013333333333333333  nsteps=941
redshift_fit_1d dja-grism_033239.99-275208.53 best z=1.41168  dlnP=2526.9
redshift_fit_1d dja-grism_033239.99-275208.53 F115W dlnP=1375.5
redshift_fit_1d dja-grism_033239.99-275208.53 F150W dlnP=1151.6
redshift_fit_1d dja-grism_033239.99-275208.53 F200W dlnP=-0.1

png

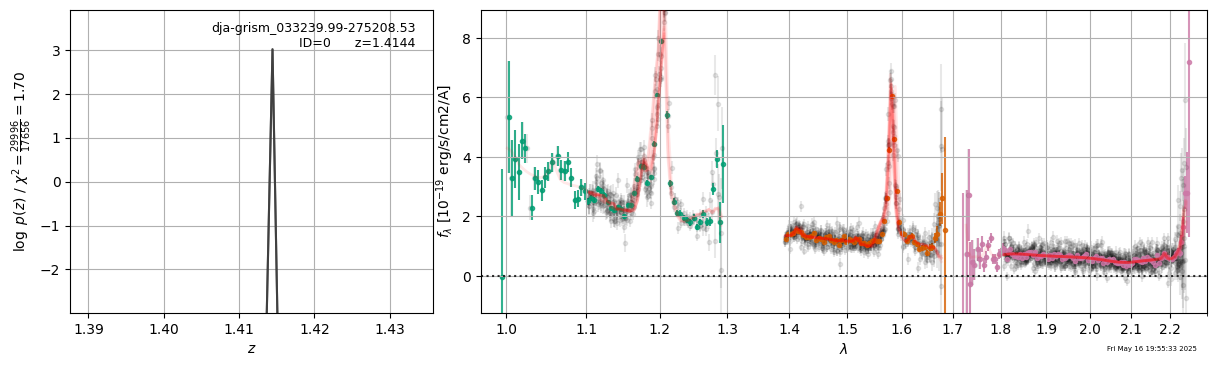

Use original grizli tools to make line maps, measure line fluxes, etc.

Though it still doesn’t have a full contamination model….

templ = utils.load_templates(line_complexes=False, fwhm=1500)
splw = np.arange(9000, 3.e4, 5)
bspl = utils.bspline_templates(splw, df=31)
for t in templ:
    if t.startswith('line'):
        bspl[t] = templ[t]

tfit = mb.template_at_z(z=zres['z'], templates=bspl, fitter='lstsq')
_ = mb.drizzle_grisms_and_PAs(tfit=tfit, diff=True, kernel='point',)

if not os.path.exists('fit_args.npy'):
    from grizli.pipeline import auto_script
    fit_args = auto_script.generate_fit_params(include_photometry=False)

Saved arguments to fit_args.npy.

png

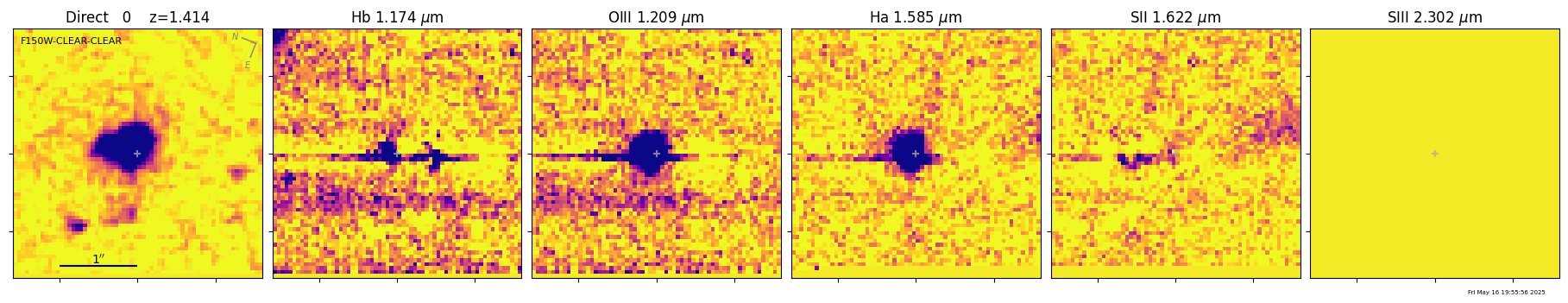

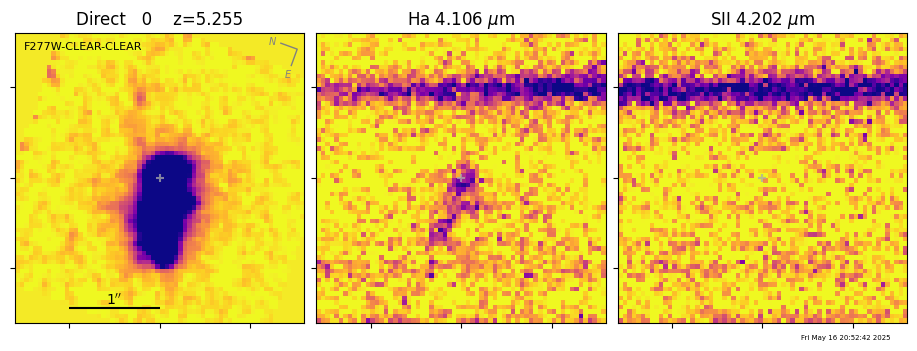

# Line map
# mb.drizzle_fit_lines?
# ! ls dja-grism_100014.21+021311.88*

dz = 0.01*(1+zres['z'])

from grizli import fitting, multifit
_ = fitting.run_all_parallel(
    0,
    file_pattern=mb.group_name,
    group_name=mb.group_name,
    get_output_data=True,
    fit_trace_shift=False,
    # zr=(zres['z'], ),                                 # Fix redshift
    zr=zres['z'] + np.array([-1,1])*0.01*(1+zres['z']), # Refit redshift in small range around best fit from above
    verbose=True,
    protect=False,
    # dscale=1./16/8, scale_linemap=4 / 4,
    min_sens=1.e-4, min_cont=1.e-4,
    t0=bspl,
    t1=bspl,
    pline={
        'kernel': 'square',
        'pixfrac': 0.5,
        'pixscale': 0.05,
        'size': 8,
        'wcs': None,
        # aligned with dispersion
        'theta': 270 - mb.beams[0].get_dispersion_PA(decimals=2),
    },
)

Run id=0 with fit_args.npy
load_master_fits: dja-grism_033239.99-275208.53.beams.fits
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
1 ./jw01283005001_04201_00001_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
2 ./jw01283005001_04201_00002_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
3 ./jw01283005001_04201_00003_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
4 ./jw01283005001_04201_00004_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
5 ./jw01283005001_04201_00005_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
6 ./jw01283005001_04201_00006_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
7 ./jw01283005001_04201_00007_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
8 ./jw01283005001_04201_00008_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
9 ./jw01283005001_04201_00009_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
10 ./jw01283005001_09201_00001_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
11 ./jw01283005001_09201_00002_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
12 ./jw01283005001_09201_00003_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
13 ./jw01283005001_09201_00004_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
14 ./jw01283005001_09201_00005_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
15 ./jw01283005001_09201_00006_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
16 ./jw01283005001_09201_00007_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
17 ./jw01283005001_09201_00008_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
18 ./jw01283005001_09201_00009_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
19 ./jw01283005001_14201_00001_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
20 ./jw01283005001_14201_00002_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
21 ./jw01283005001_14201_00003_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
22 ./jw01283005001_14201_00004_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
23 ./jw01283005001_14201_00005_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
24 ./jw01283005001_14201_00006_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
25 ./jw01283005001_14201_00007_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
26 ./jw01283005001_14201_00008_nis_rate.fits GR150R
load_new_sensitivity_curve: only defined for NIRCAM (NIRISS)
27 ./jw01283005001_14201_00009_nis_rate.fits GR150R
User templates! N=71

Cache rest-frame template:  bspl 0 9000
Cache rest-frame template:  bspl 1 9340
Cache rest-frame template:  bspl 2 9830
Cache rest-frame template:  bspl 3 10500
Cache rest-frame template:  bspl 4 11250
Cache rest-frame template:  bspl 5 12000
Cache rest-frame template:  bspl 6 12750
Cache rest-frame template:  bspl 7 13500
Cache rest-frame template:  bspl 8 14250
Cache rest-frame template:  bspl 9 15000
Cache rest-frame template:  bspl 10 15750
Cache rest-frame template:  bspl 11 16500
Cache rest-frame template:  bspl 12 17250
Cache rest-frame template:  bspl 13 18000
Cache rest-frame template:  bspl 14 18750
Cache rest-frame template:  bspl 15 19495
Cache rest-frame template:  bspl 16 20245
Cache rest-frame template:  bspl 17 20995
Cache rest-frame template:  bspl 18 21745
Cache rest-frame template:  bspl 19 22495
Cache rest-frame template:  bspl 20 23245
Cache rest-frame template:  bspl 21 23995
Cache rest-frame template:  bspl 22 24745
Cache rest-frame template:  bspl 23 25495
Cache rest-frame template:  bspl 24 26245
Cache rest-frame template:  bspl 25 26995
Cache rest-frame template:  bspl 26 27745
Cache rest-frame template:  bspl 27 28495
Cache rest-frame template:  bspl 28 29165
Cache rest-frame template:  bspl 29 29655
Cache rest-frame template:  bspl 30 29995
[1A[1M  1.3876   40508.8 (1.3876) 1/6
[1A[1M  1.3971   38867.2 (1.3971) 2/6
[1A[1M  1.4067   34276.1 (1.4067) 3/6
[1A[1M  1.4164   30047.1 (1.4164) 4/6
[1A[1M  1.4261   35646.2 (1.4164) 5/6
[1A[1M  1.4358   39717.1 (1.4164) 6/6
First iteration: z_best=1.4164

zgrid_zoom: 1.4164 [1.4058, 1.4270] N=23
[1A[1M- 1.4058   34882.7 (1.4058) 1/23
[1A[1M- 1.4067   34287.2 (1.4067) 2/23
[1A[1M- 1.4077   33889.2 (1.4077) 3/23
[1A[1M- 1.4086   33474.8 (1.4086) 4/23
[1A[1M- 1.4096   33041.9 (1.4096) 5/23
[1A[1M- 1.4106   32585.3 (1.4106) 6/23
[1A[1M- 1.4115   31762.5 (1.4115) 7/23
[1A[1M- 1.4125   30673.6 (1.4125) 8/23
[1A[1M- 1.4135   30055.3 (1.4135) 9/23
[1A[1M- 1.4144   29995.7 (1.4144) 10/23
[1A[1M- 1.4154   30066.1 (1.4144) 11/23
[1A[1M- 1.4164   30048.4 (1.4144) 12/23
[1A[1M- 1.4173   30065.4 (1.4144) 13/23
[1A[1M- 1.4183   30625.2 (1.4144) 14/23
[1A[1M- 1.4193   31929.9 (1.4144) 15/23
[1A[1M- 1.4202   33209.7 (1.4144) 16/23
[1A[1M- 1.4212   33871.7 (1.4144) 17/23
[1A[1M- 1.4222   34117.9 (1.4144) 18/23
[1A[1M- 1.4231   34283.6 (1.4144) 19/23
[1A[1M- 1.4241   34515.7 (1.4144) 20/23
[1A[1M- 1.4251   34909.4 (1.4144) 21/23
[1A[1M- 1.4260   35624.6 (1.4144) 22/23
[1A[1M- 1.4270   36608.0 (1.4144) 23/23
Cache rest-frame template:  bspl 0 9000
Cache rest-frame template:  bspl 1 9340
Cache rest-frame template:  bspl 2 9830
Cache rest-frame template:  bspl 3 10500
Cache rest-frame template:  bspl 4 11250
Cache rest-frame template:  bspl 5 12000
Cache rest-frame template:  bspl 6 12750
Cache rest-frame template:  bspl 7 13500
Cache rest-frame template:  bspl 8 14250
Cache rest-frame template:  bspl 9 15000
Cache rest-frame template:  bspl 10 15750
Cache rest-frame template:  bspl 11 16500
Cache rest-frame template:  bspl 12 17250
Cache rest-frame template:  bspl 13 18000
Cache rest-frame template:  bspl 14 18750
Cache rest-frame template:  bspl 15 19495
Cache rest-frame template:  bspl 16 20245
Cache rest-frame template:  bspl 17 20995
Cache rest-frame template:  bspl 18 21745
Cache rest-frame template:  bspl 19 22495
Cache rest-frame template:  bspl 20 23245
Cache rest-frame template:  bspl 21 23995
Cache rest-frame template:  bspl 22 24745
Cache rest-frame template:  bspl 23 25495
Cache rest-frame template:  bspl 24 26245
Cache rest-frame template:  bspl 25 26995
Cache rest-frame template:  bspl 26 27745
Cache rest-frame template:  bspl 27 28495
Cache rest-frame template:  bspl 28 29165
Cache rest-frame template:  bspl 29 29655
Cache rest-frame template:  bspl 30 29995
Drizzle line -> SIII (1.54 0.35)
Drizzle line -> OII-7325 (0.90 0.35)
Drizzle line -> ArIII-7138 (8.61 12.55)
Drizzle line -> SII  (0.63 0.14)
Drizzle line -> Ha   (10.24 0.13)
Drizzle line -> OI-6302 (0.63 0.12)
Drizzle line -> HeI-5877 (0.57 0.10)
Drizzle line -> OIII (21.49 0.27)
Drizzle line -> Hb   (3.09 0.14)
Drizzle line -> OIII-4363 (1.29 0.63)
Drizzle line -> Hg   (0.09 0.76)
[1A[1Mdja-grism_033239.99-275208.53_00000.full.fits

png

NIRCam

Example [OIII] / H$\alpha$ emitters with a PRISM spectrum.

ra, dec, prism_file = 150.1069005, 2.36004609, "cosmos-transients-v4_prism-clear_6585_61234.spec.fits"
ra, dec, prism_file = 150.09900755, 2.34362213, "glazebrook-cos-obs2-v4_prism-clear_2565_15420.spec.fits"
prism_file, ra, dec = 'gto-wide-cos02-v4_prism-clear_1214_727.spec.fits', 150.07850493, 2.35235787

# Show the prism spectrum
prism_mask = prism_file.split("_prism")[0]

Image(f"https://s3.amazonaws.com/msaexp-nirspec/extractions/{prism_mask}/{prism_file.replace('spec.fits', 'fnu.png')}")

png

mb = sky_wfss.extract_from_coords(
    ra=ra,
    dec=dec,
    grisms=['F356W-GRISMR','F430M-GRISMR','F410M-GRISMR','F444W-GRISMR','F444W-GRISMC','F480M-GRISMR','F480M-GRISMC'],
    size=48+32*1,
    grp=None,
    clean=False,
    get_cutout=1,
    cutout_filter=','.join(['F200W-CLEAR','F277W-CLEAR','F356W-CLEAR','F444W-CLEAR'][-3:]), #[::1][-1:]),
    thumbnail_size=0.8 * 2,
    prefix=prefix,
    mb_kwargs={},
    filter_kwargs=[{}, None][1],
    verbose=True,
    local=False,
    use_jwst_crds=False,
    **kwargs
)

https://grizli-cutout.herokuapp.com/exposures?polygon=rect(150.078505,2.352358,0.25)&filters=F356W-GRISMR,F430M-GRISMR,F410M-GRISMR,F444W-GRISMR,F444W-GRISMC,F480M-GRISMR,F480M-GRISMC&output=csv
extract_from_coords: dja-grism_100018.84+022108.49 10 exposures
./jw05893014003_02101_00001_nrcblong_rate.fits exists
./jw05893014004_02101_00003_nrcblong_rate.fits exists
./jw05893014004_02101_00004_nrcblong_rate.fits exists
./jw05893014004_02101_00005_nrcblong_rate.fits exists
./jw05893014004_02101_00006_nrcblong_rate.fits exists
./jw05893014003_02101_00002_nrcblong_rate.fits exists
./jw05893014003_02101_00003_nrcblong_rate.fits exists
./jw05893014003_02101_00004_nrcblong_rate.fits exists
./jw05893014003_02101_00005_nrcblong_rate.fits exists
./jw05893014003_02101_00006_nrcblong_rate.fits exists
https://grizli-cutout.herokuapp.com/thumb?all_filters=False&filters=f277w-clear,f356w-clear,f444w-clear&ra=150.07850493&dec=2.35235787&size=1.6&output=fits_weight -> dja-grism_100018.84+022108.49_ir.fits
thumbnail: F277W-CLEAR
thumbnail: F356W-CLEAR
thumbnail: F444W-CLEAR
extract_from_coords: direct image = dja-grism_100018.84+022108.49_ir.fits
 1 / 10 GroupFLT jw05893014003_02101_00001_nrcblong_rate.fits
Using default C-based coordinate transformation...
 2 / 10 GroupFLT jw05893014004_02101_00003_nrcblong_rate.fits
Using default C-based coordinate transformation...
 3 / 10 GroupFLT jw05893014004_02101_00004_nrcblong_rate.fits
Using default C-based coordinate transformation...
 4 / 10 GroupFLT jw05893014004_02101_00005_nrcblong_rate.fits
Using default C-based coordinate transformation...
 5 / 10 GroupFLT jw05893014004_02101_00006_nrcblong_rate.fits
Using default C-based coordinate transformation...
 6 / 10 GroupFLT jw05893014003_02101_00002_nrcblong_rate.fits
Using default C-based coordinate transformation...
 7 / 10 GroupFLT jw05893014003_02101_00003_nrcblong_rate.fits
Using default C-based coordinate transformation...
 8 / 10 GroupFLT jw05893014003_02101_00004_nrcblong_rate.fits
Using default C-based coordinate transformation...
 9 / 10 GroupFLT jw05893014003_02101_00005_nrcblong_rate.fits
Using default C-based coordinate transformation...
10 / 10 GroupFLT jw05893014003_02101_00006_nrcblong_rate.fits
Using default C-based coordinate transformation...
extract_from_coords: dja-grism_100018.84+022108.49 6 beam cutouts

png

Contamination or background over-subtraction can look troublesome, but can still find the line using the flexible contamination / continuum model

# Just show the simplified 1D extraction

from importlib import reload
reload(sky_wfss)

dv = 50 * 3

b2d, zres = sky_wfss.combine_beams_2d(
    mb,
    step=0.5, pixfrac=0.75,
    ymax=12.5,
    profile_sigma=1.5, profile_offset=-0.5, profile_type="gaussian",     # Gaussian cross-dispersion model
    # profile_type="grizli",                                   # Use the direct image thumbnail
    bkg_percentile=None,
    cont_spline=31*1, zfit_nspline=-1,
    zfit_kwargs=None,
)

final spectrum file: dja-grism_100018.84+022108.49.f444w.spec.fits

png

# Do the redshift fit

dv = 150 # km/s

b2d, zres = sky_wfss.combine_beams_2d(
    mb,
    step=0.5, pixfrac=0.75,
    ymax=12.5,
    profile_sigma=1.5, profile_offset=-0.5, profile_type="gaussian",     # Gaussian cross-dispersion model
    # profile_type="grizli",                                   # Use the direct image thumbnail
    bkg_percentile=None,
    cont_spline=31*1, zfit_nspline=-1,
    # cont_spline=0, zfit_nspline=31,
    zfit_kwargs=dict(
        rest_wave=[6800, 4800], # Halpha - OIII
        velocity_sigma=dv,
        dz=dv/3.e5/2,
    ),
)

final spectrum file: dja-grism_100018.84+022108.49.f444w.spec.fits
redshift_fit_1d dja-grism_100018.84+022108.49 z=[4.618, 9.582] dz=0.00025  nsteps=2534
redshift_fit_1d dja-grism_100018.84+022108.49 best z=5.25520  dlnP=113.8
redshift_fit_1d dja-grism_100018.84+022108.49 F444W dlnP=113.8

png

Compare to PRISM spectrum

# Prism spectrum
import msaexp.spectrum
prism = msaexp.spectrum.SpectrumSampler(
    f"https://s3.amazonaws.com/msaexp-nirspec/extractions/{prism_mask}/{prism_file}"
)

fig, axes = plt.subplots(1,2,figsize=(10, 4), sharey=True)
for ax in axes:
    ax.plot(prism['wave'], prism['flux'] * prism['to_flam'], label=prism_file, color='k', alpha=0.5)

    for gr in b2d:
        grism = b2d[gr]['spec']
        for PA in mb.PA[gr]:
            ix = mb.PA[gr][PA][0]
            break

        sens = np.interp(grism['wave']*1.e4, mb.beams[ix].beam.lam, mb.beams[ix].beam.sensitivity)
        trim = sens > 0.05*sens.max()
        ax.plot(grism['wave'][trim], (grism['flux'] / sens)[trim] * 1.e20, label=gr, alpha=0.5)

    ax.set_ylim(-5, 25)
    ax.grid()

for lrest in [5008, 6564.]:
    lobs = lrest * (1 + zres['z']) / 1.e4
    if lobs > grism['wave'].min():
        ax.set_xlim(lobs - 0.1, lobs + 0.1)
        break

axes[0].set_ylabel(r'$f_\lambda$ [$10^{-20}$ erg$~$/$~$s$~$/$~$cm$^2~$/$~\mathrm{\AA}$]')
# ax.set_xlim(3.8, 4.2)
# ax.set_xlim(4.5, 5.0)
fig.tight_layout(pad=1)

png

Line map

templ = utils.load_templates(line_complexes=False, fwhm=150)
splw = np.arange(9000, 3.e4, 5)
bspl = utils.bspline_templates(splw, df=31)
for t in templ:
    if t.startswith('line'):
        bspl[t] = templ[t]

tfit = mb.template_at_z(z=zres['z'], templates=bspl, fitter='lstsq')
_ = mb.drizzle_grisms_and_PAs(tfit=tfit, diff=True, kernel='point',)

if not os.path.exists('fit_args.npy'):
    from grizli.pipeline import auto_script
    fit_args = auto_script.generate_fit_params(include_photometry=False)

png

# Line map
# mb.drizzle_fit_lines?
# ! ls dja-grism_100014.21+021311.88*

fit_res = fitting.run_all_parallel(
    0,
    file_pattern=mb.group_name,
    group_name=mb.group_name,
    get_output_data=True,
    fit_trace_shift=False,
    zr=(zres['z'], ),                                 # Fix redshift
    # zr=zres['z'] + np.array([-1,1])*0.001*(1+zres['z']), # Refit redshift in small range around best fit from above
    verbose=True,
    protect=False,
    # dscale=1./16/8, scale_linemap=4 / 4,
    min_sens=1.e-4, min_cont=1.e-4,
    t0=bspl,
    t1=bspl,
    pline={
        'kernel': 'square',
        'pixfrac': 0.5,
        'pixscale': 0.05,
        'size': 8,
        'wcs': None,
        # aligned with dispersion
        'theta': 270 - mb.beams[0].get_dispersion_PA(decimals=2),
    },
)

Run id=0 with fit_args.npy
load_master_fits: dja-grism_100018.84+022108.49.beams.fits
1 ./jw05893014003_02101_00001_nrcblong_rate.fits F444W
2 ./jw05893014003_02101_00002_nrcblong_rate.fits F444W
3 ./jw05893014003_02101_00003_nrcblong_rate.fits F444W
4 ./jw05893014003_02101_00004_nrcblong_rate.fits F444W
5 ./jw05893014003_02101_00005_nrcblong_rate.fits F444W
6 ./jw05893014003_02101_00006_nrcblong_rate.fits F444W
User templates! N=71

Cache rest-frame template:  bspl 0 9000
Cache rest-frame template:  bspl 1 9340
Cache rest-frame template:  bspl 2 9830
Cache rest-frame template:  bspl 3 10500
Cache rest-frame template:  bspl 4 11250
Cache rest-frame template:  bspl 5 12000
Cache rest-frame template:  bspl 6 12750
Cache rest-frame template:  bspl 7 13500
Cache rest-frame template:  bspl 8 14250
Cache rest-frame template:  bspl 9 15000
Cache rest-frame template:  bspl 10 15750
Cache rest-frame template:  bspl 11 16500
Cache rest-frame template:  bspl 12 17250
Cache rest-frame template:  bspl 13 18000
Cache rest-frame template:  bspl 14 18750
Cache rest-frame template:  bspl 15 19495
Cache rest-frame template:  bspl 16 20245
Cache rest-frame template:  bspl 17 20995
Cache rest-frame template:  bspl 18 21745
Cache rest-frame template:  bspl 19 22495
Cache rest-frame template:  bspl 20 23245
Cache rest-frame template:  bspl 21 23995
Cache rest-frame template:  bspl 22 24745
Cache rest-frame template:  bspl 23 25495
Cache rest-frame template:  bspl 24 26245
Cache rest-frame template:  bspl 25 26995
Cache rest-frame template:  bspl 26 27745
Cache rest-frame template:  bspl 27 28495
Cache rest-frame template:  bspl 28 29165
Cache rest-frame template:  bspl 29 29655
Cache rest-frame template:  bspl 30 29995
[1A[1M  5.2552  196564.9 (5.2552) 1/1
First iteration: z_best=5.2552

Cache rest-frame template:  bspl 0 9000
Cache rest-frame template:  bspl 1 9340
Cache rest-frame template:  bspl 2 9830
Cache rest-frame template:  bspl 3 10500
Cache rest-frame template:  bspl 4 11250
Cache rest-frame template:  bspl 5 12000
Cache rest-frame template:  bspl 6 12750
Cache rest-frame template:  bspl 7 13500
Cache rest-frame template:  bspl 8 14250
Cache rest-frame template:  bspl 9 15000
Cache rest-frame template:  bspl 10 15750
Cache rest-frame template:  bspl 11 16500
Cache rest-frame template:  bspl 12 17250
Cache rest-frame template:  bspl 13 18000
Cache rest-frame template:  bspl 14 18750
Cache rest-frame template:  bspl 15 19495
Cache rest-frame template:  bspl 16 20245
Cache rest-frame template:  bspl 17 20995
Cache rest-frame template:  bspl 18 21745
Cache rest-frame template:  bspl 19 22495
Cache rest-frame template:  bspl 20 23245
Cache rest-frame template:  bspl 21 23995
Cache rest-frame template:  bspl 22 24745
Cache rest-frame template:  bspl 23 25495
Cache rest-frame template:  bspl 24 26245
Cache rest-frame template:  bspl 25 26995
Cache rest-frame template:  bspl 26 27745
Cache rest-frame template:  bspl 27 28495
Cache rest-frame template:  bspl 28 29165
Cache rest-frame template:  bspl 29 29655
Cache rest-frame template:  bspl 30 29995


WARNING:py.warnings:/usr/local/lib/python3.11/dist-packages/grizli/fitting.py:4217: UserWarning: Attempting to set identical low and high xlims makes transformation singular; automatically expanding.
  axz.set_xlim(zmi, zma)

2025-05-16 20:52:17,962 - stpipe - WARNING - /usr/local/lib/python3.11/dist-packages/grizli/fitting.py:4217: UserWarning: Attempting to set identical low and high xlims makes transformation singular; automatically expanding.
  axz.set_xlim(zmi, zma)

WARNING:stpipe:/usr/local/lib/python3.11/dist-packages/grizli/fitting.py:4217: UserWarning: Attempting to set identical low and high xlims makes transformation singular; automatically expanding.
  axz.set_xlim(zmi, zma)

WARNING:py.warnings:/usr/local/lib/python3.11/dist-packages/grizli/fitting.py:944: UserWarning: Attempting to set identical low and high xlims makes transformation singular; automatically expanding.
  axz.set_xlim(zmi, zma)

2025-05-16 20:52:19,515 - stpipe - WARNING - /usr/local/lib/python3.11/dist-packages/grizli/fitting.py:944: UserWarning: Attempting to set identical low and high xlims makes transformation singular; automatically expanding.
  axz.set_xlim(zmi, zma)

WARNING:stpipe:/usr/local/lib/python3.11/dist-packages/grizli/fitting.py:944: UserWarning: Attempting to set identical low and high xlims makes transformation singular; automatically expanding.
  axz.set_xlim(zmi, zma)



Drizzle line -> OII-7325 (-0.85 0.23)
Drizzle line -> ArIII-7138 (-0.41 0.18)
Drizzle line -> SII  (0.01 0.22)
Drizzle line -> Ha   (2.97 0.16)
Drizzle line -> OI-6302 (-1.05 0.19)
[1A[1Mdja-grism_100018.84+022108.49_00000.full.fits

png
